The versatile utility LED

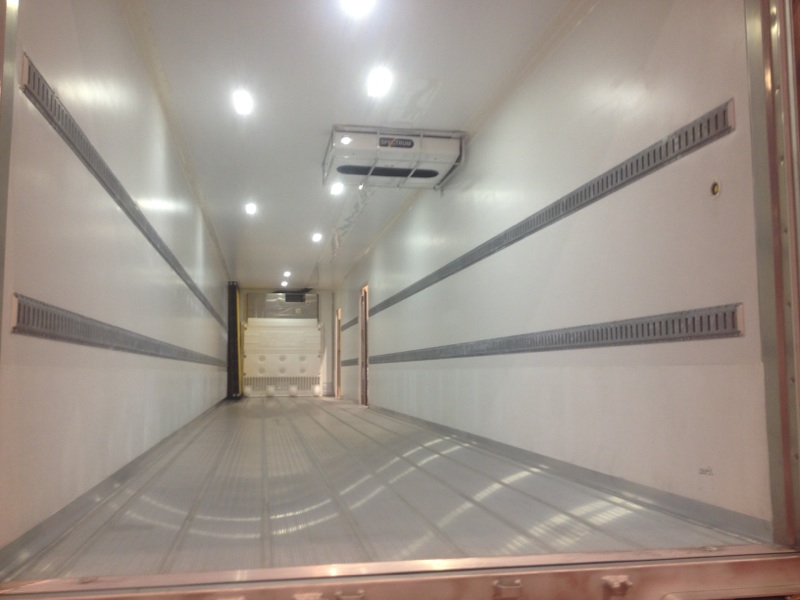

DuroLumen provides all the LED lighting benefits of the original DuroLumen LED Interior Lighting System such as power savings, high performance and robust design. Like exterior LED lighting, the interior LED DuroLumen System offers numerous benefits: rugged, long-lasting and efficient … to name a few. Replace existing incandescent and fluorescent dome lights with the amp-saving technology of Light Emitting Diodes (LEDs).
Features & Benefits
- 7-Year Warranty: Industry best warranty; 7 years.
- Moisture: Withstands a 30-minute water submersion test while operating (IPX7 rating).
- Bright Beam: White/White model allows for high or low beam intensity (user-supplied switch)
- Extreme Temp: Purpose-built for extreme refrigerated conditions -25°F below to 150°F
- Shock and Vibe: Day-to-day jarring is no match for solid state electronics. Tested to military standard (MIL 810-A).
Specifications
| Part Number | Description | Lumen | Amp | Voltage Range |
|---|---|---|---|---|
| R03696 | Surface mount. White/white offers high or low beam intensity switching (user supplied switch) | 2,800 high 1,400 low |
2.5 high 1.25 low |
9-16VDC |
| R03694 | Surface mount. White only. | 1,400 | 1.25 low | 9-16VDC |
| R03695 | Surface mount. Red/White offers high or low beam intensity switching (user supplied switch) | 1,400 white 500 red |
1.25 low | 9-16VDC |
| R03850 | Recessed mount. White/White offers high or low beam intensity switching (user supplied switch) | 2,800 high 1,400 low |
2.5 high 1.25 low |
9-16VDC |
| R03848 | Recessed mount. White only. | 1,400 | 1.25 low | 9-16VDC |
| R03849 | Recessed mount. Red/White offers high or low beam intensity switching (user supplied switch) | 1,400 white 500 red |
1.25 | 9-16VDC |
