Bustin Low Profile Deck Plates

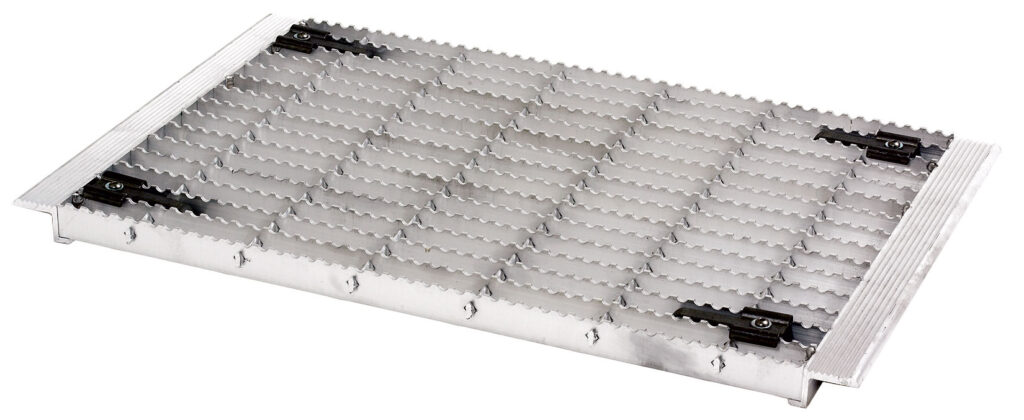

The Low Profile Deck Plate sits flush with the frame rails, preventing normal damage that occurs to surface mount designs.

Did you know Bustin deck plate exceeds federal highway regulations? Each plate features our serrated slip-resistant surface. And it self-cleans better than competitive solutions. Don’t mess around with your safety. Specify Bustin deck plate with your truck builder today.

Designed to sit on top of frame rails, each deck plate includes 4 J-bolt blocks for ease of installation. With pre-mounted mounted hardware, this deck plate installs in just a few quick minutes.

Weight Capacity: 450lbs

Part Numbers
DE1032, DE1033, DE1034, DE1035, DE1028, DE1029, DE1026, DE1027, DE1030, DE1031
Safety

Meets or exceeds federal highway recommendations

Slip Resistant

Most step slip resistance as verified by independent lab testing

Self-Cleaning

With each footstep ice, snow, mud and debris fall to the ground

Corrosion Resistant

Aluminum welded construction is durable and rust proof

Maintenance

Swaged lock construction with welded end banding; no bolts to loosen or replace

Weight Capacity

450lbs.



Part #Bearing BarFrame Rail OpeningWidthWt.
DE1032 1"x1/8" NST03 25-7/8" to 26-3/4" 18" 10 lbs
DE1033 1"x1/8" NST03 26-7/8" to 27-3/4" 18" 10 lbs
DE1034 1"x1/8" NST03 25-7/8" to 26-3/4" 24" 12 lbs
DE1035 1"x1/8" NST03 26-7/8" to 27-3/4" 24" 12 lbs
DE1028 1-1/4" x 1/8" NST05 25-7/8" to 26-3/4" 18" 11 lbs
DE1029 1-1/4" x 1/8" NST05 26-7/8" to 27-3/4" 18" 11 lbs
DE1026 1-1/4" x 1/8" NST05 25-7/8" to 26-3/4" 24" 14 lbs
DE1027 1-1/4" x 1/8" NST05 26-7/8" to 27-3/4" 24" 14 lbs
DE1030 1-1/4" x 1/8" NST05 25-7/8" to 26-3/4" 36" 19 lbs
DE1031 1-1/4" x 1/8" NST05 26-7/8" to 27-3/4" 36" 19 lbs

Easy Installation

deck-install-1
Step 1:

Place Deck Plate on frame rail

deck-install-1
Step 2:

Slide hardware into place

deck-install-1
Step 3:

Tighten bolt to secure Deck Plate in place
