ROM Cargo Covers

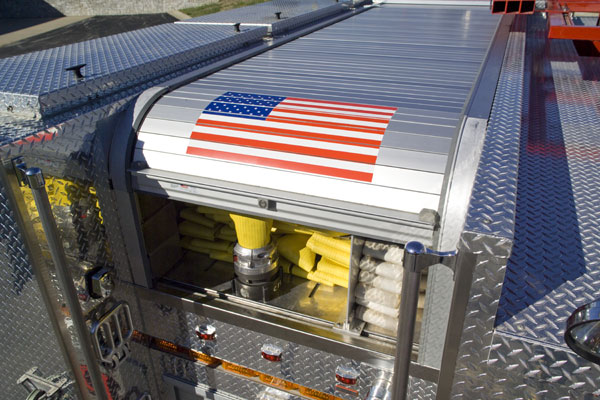

The ROM Cargo Cover is a custom-made protective cover for emergency vehicle truck and hose beds used to secure and protect stored equipment, hoses and supplies. It provides safety, security and efficiency for the fire service, and features an optional NFPA compliant walk surface.

Safety

Enclosed compartment
Stops equipment from falling off and prevents hose from inadvertently deploying while responding to the scene.
Manual Override
In case of power failure, system can be operated manually via the manual override release.

Security

Power Lock
Discourages theft of equipment from an unattended vehicle.
Fire Protection
Made of flame-resistant materials.
Protection
Minimizes introduction of dirt, dust and water into the compartment.
Fireproof
Protects hose and equipment from flying embers.
Door Ajar System
Prevents accidental loss of equipment and theft.

Efficiency

Easy access
No heavy doors to lift or swing-outs to interfere with personnel.
Power Operated
Access equipment at the touch of a button.
Convenient
Eliminates the need to move hydraulic ladder rack to access the hose bed.
Integrated
No bungee cords or other tie-downs.
Durable
Replaces canvas tarps and their ongoing repair/replacement costs.
Visually Appealing
Attractive anodized aluminum finish.

Compliance

  • Meets NFPA 1901 section 15.1.7 recommendation for covered hose storage area.
  • NFPA compliant walk surface available.



Standard Features

  • Flush Track
  • Satin Finish
  • Power Lock
  • Override Lock
  • Door Ajar Switch
* Doors wider than 50" require a cargo divider / 1-1/4" below top of opening. ** Maximum vertical height is limited by the opening width. For details see the chart below.
Roll-Up Door SizesMaximumMinimum
Roll-Up Door length 226" 30"
Roll-Up Door width* 76" 28"
Roll-Up Door vertical height** 96" 19"
Opening WidthMax. Vertical Height
28" to 62" 93"
63" 92"
64" 91"
65" 90"
66" 89"
67" 88"
68" 87"
69" 86"
70" 85"
71" 84"
72" 83"
73" 82"
74" 81"
75" 80"
76" 79"

Spiral Assembly Sizes

SizeRoll-Up Door LengthHeightPower Roll-Up Door Length
B 30" to 90" 12.144" 16.875"
C < 132" 14.203" 18.805"
D < 174" 16.000" 20.875"
E < 226" 18.500" 22.937"

Weight

Roll-Up Door
Approx. 2.10 lbs per sq. ft.
Spiral assembly
Approx. 30 lbs. (varies by roll-up door size)

Electrical

Motor
30 Amp circuit / 12V minimum
Lighting
10 Amp circuit / 12V minimum

Controller Features

  • Solid state components
  • Built-in circuit protection
  • Built-in shut off when roll-up door is obstructed
  • Diagnostic lights for troubleshooting

Ratings

Maximum load
800 lbs at center. Not rated as a walk surface.
NFPA compliant walk surface (optional)
NFPA compliant walk surface with R·O·M applied 1-3/4" friction tape.
Water penetration
Minimizes introduction of dirt, dust, and water into the compartment.
Fire protection
Made of flame-resistant materials



Key Options for Power Lock
  • J-236
  • Model 1250
  • Model 751
NFPA Compliant Walk Surface
NFPA compliant walk surface with R·O·M applied 1-3/4" friction tape on the full surface of the curtain.



What are the main features and benefits of the R·O·M Cargo Cover?
  • Safety in preventing equipment and hose from flying off a moving vehicle.
  • Security to prevent theft, protect from the elements, and fireproof the bed cover.
  • Efficiency for easy access to the compartment during emergency operations.
  • Compliance to NFPA Standards for hose care, compartment lighting and walk surface.
Isn’t it cheaper to use a tarp?
The initial price of a tarp may be less, but the long-term operating cost is greater than for an R·O·M Cargo Cover. Tarps require constant maintenance, they use inefficient, unreliable tie-downs, and they wear out and have to be replaced. With proper care and maintenance, your Cargo Cover can last the life of your vehicle.
Will the Cargo Cover fit my bed specs?
Each R·O·M Cargo Cover is custom-made to your exact specs. We can manufacture a door up to 226” long and 76” wide. Wider doors can be made if the roll-up door is not required to make a vertical turn; contact us for further details.
Will my compartment be water resistant?
Yes. Our roll-up door will reduce the introduction of water and other elements into the compartment, but it is not completely waterproof.
Is a Door Ajar System available?
Yes, the innovative R·O·M Door Ajar System prevents accidental loss of equipment and theft. This comes standard on R·O·M's Power Cargo Cover (Door Ajar Circuitry provided).
Is friction tape available?
Yes, friction tape is available and covers the full curtain. R·O·M's Cargo Cover is an NFPA compliant walk surface with R·O·M applied 1-3/4" friction tape.



ROM Hose Bed Cover / Horizontal Shutter Installation Instructions

Modified Date: October 31, 2013
Filesize: 158 kB

ROM Hose Bed Cover / Horizontal Shutter Technical Specs

Modified Date: October 31, 2013
Filesize: 19 kB

ROM Hose Bed Cover Brochure

Modified Date: October 31, 2013
Filesize: 233 kB

ROM Hose Bed Cover/Horizontal Shutter Parts Manual

Modified Date: August 07, 2014
Filesize: 782 kB

ROM Hose Bed Cover/Horizontal Shutter Specification / Order Form

Modified Date: October 31, 2013
Filesize: 190 kB

ROM Service/Utility Truck Bed Cover Flyer

Modified Date: October 31, 2013
Filesize: 196 kB

ROM Technical Bulletin - Hose Bed Cover / Horizontal Shutter 2.0

Modified Date: October 31, 2013
Filesize: 67 kB
